Flat 4 Flute HRC 55 Degree Solid Carbide End Mill

  • 1
  • 2

Brand Name : Betalent

Model Number : 4 flute, flat end, extra long

Place of Origin : Xiamen,China

MOQ : 10

Price : USD 1to50/PC

Supply Ability : 100,000pcs/month

Packaging Details : Each piece packed to a plastic tube, 10 or 20pcs wrapped by EPE, several EPE packs placed to a carton

Workpiece Hardness : HRC 55-58degree

Coating : TiAlSiN

Type : End Mill,tungsten carbide router bits

Material : Carbide,Tungsten Cobalt Alloy

Diameter : 1-20mm

Overall length : 75~150mm / customized

Suitable for : Stainless steel

Machine type : Milling Maching, from German

Flute : 4Flutes

Precision : High Precision,0.005-0.01mm

Application : milling,Metal Working Tool,CNC Process

Processing type : Metal Cutting Tools,end mill,Casting,Professional Tool Used

Controlling mode : CNC Tooling System,CNC Cutting Mills

Usage : General High Speed Cutting,profile milling

Contact Now

Solid carbide end mill for stainless steel, Long end mill, 4flute end mill cutter, Flat end mill

Flat end mill can remove large quantity of workpiece blank material quickly, can semip-finish or rough milling of horizontal plane, profile, groove. Because of the general application character, flat end mill is more popular then other type of end mill.


Popular standard size(Can be available from stock, ready to ship):

Cutting diameter Shank dia. Total length Flute
3.0mm 3mm 75mm 4
3.0mm 4mm 75mm 4
3.0mm 3mm 100mm 4
3.0mm 4mm 100mm 4
4.0mm 4mm 75mm 4
4.0mm 4mm 100mm 4
5.0mm 5mm 75mm 4
5.0mm 6mm 75mm 4
6.0mm 6mm 75mm 4
6.0mm 6mm 100mm 4
8.0mm 8mm 75mm 4
8.0mm 8mm 100mm 4
10.0mm 10mm 100mm 4
12.0mm 12mm 100mm 4

For milling workpiece of which hardness is below HRC 50 to 55 degree, carbide grade BT50 is applied as raw material(ground carbide rod), BT45 has below physical characters:

Grade Co% Grain Size Density (g/cm) Hardness(HRA) TRS N/mm2 Application
BT55 12 0.4 14.1 92.6 4600 For cutting tools machining titanium alloy, heat resistant alloy, stainless steel, quenched steel(HRC55-58), gray cast iron.

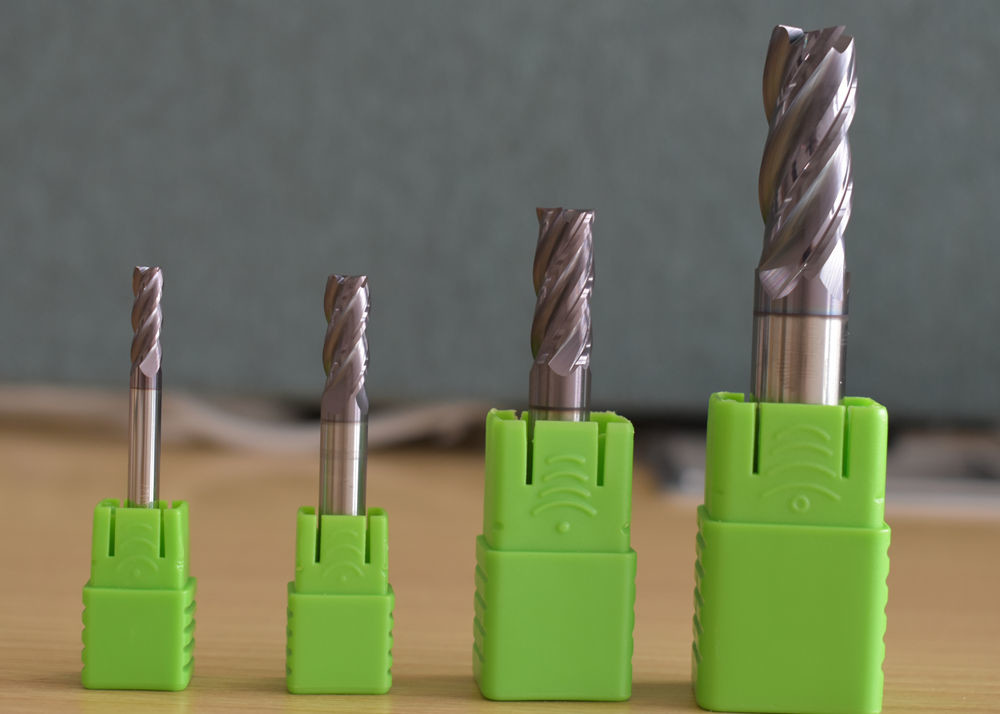

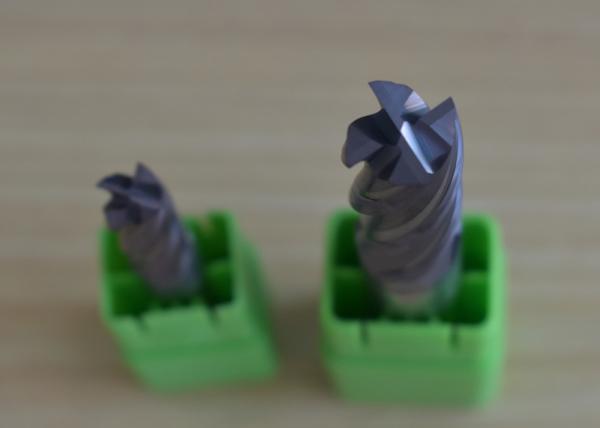

product pictures:

Flat 4 Flute HRC 55 Degree Solid Carbide End MillFlat 4 Flute HRC 55 Degree Solid Carbide End Mill

What is Carbide ?

Carbide is one of the hardest material to be found and has amazing wear resistance capabilities that make it ideal for the many tasks it performs .Not only is it very hard ,but it is able to withstand a great deal of abrasion,which enables the carbide cutting tools to outperform other material .All our end mills are produced from solid carbide material .

Why Choose us ?

1, Stable good quality.

2,Competitive price

3,Timely delivery of consignments

4,Excellent after sales, technical support
